Rigid Box Making Machine Integrating German Multi Camera Technology and YAMAHA Robotic Arms

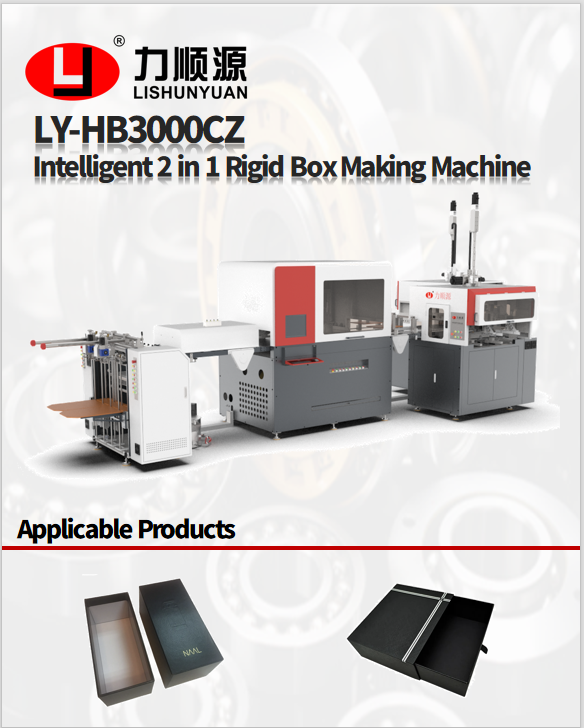

LY-HB3000CZ Intelligent 2-in-1 Rigid Box Making Machine revolutionizes box production by minimizing changeover time to just 30 minutes, thereby maximizing valuable machine uptime and operational efficiency. At its core, a highly accurate visual robot positioning system—integrating German multi-camera technology and YAMAHA robotic arms—achieves a positioning precision of ±0.05 mm, ensuring flawless alignment for premium packaging applications.

With dual forming stations and an inline bubble pressing module, the machine delivers exceptional output, reaching up to 66 pieces per minute for single-size production. By seamlessly combining intelligent automation, high-speed forming, and micron-level accuracy, the LY-HB3000CZ empowers manufacturers to produce rigid boxes with outstanding consistency and reduced setup waste.

• Shortest change-over time, saving precious machine time
• Highly accurate visual robot arm positioning with German multiple camera system

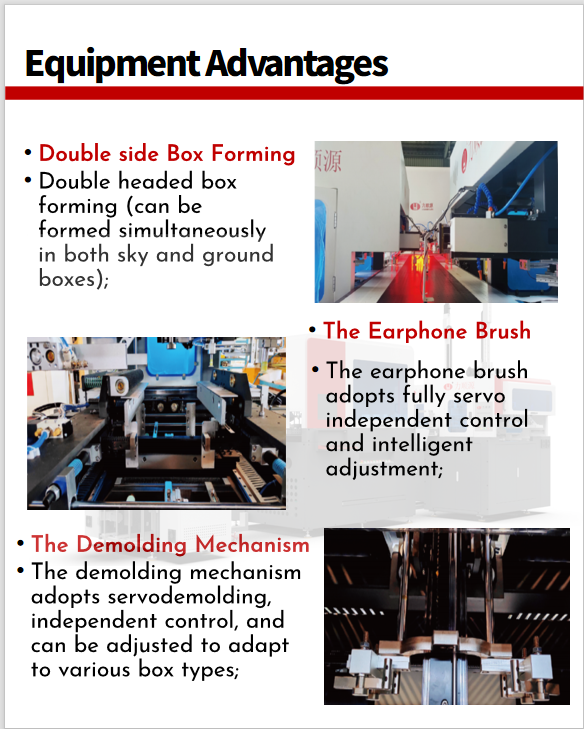

• Dual forming stations for high output
• Includes in-line bubble pressing module
• Production speed up to 66 pcs/min for single size production
• Positioning accuracy ±0.05mm
• Change-over time (job transfer time) in 30 minutes
• Suitable for mobile phone boxes, cosmetics boxes, jewelry boxes, wine box covers, and other premium packaging

• Feeder controlled by servo motor
• Paper-feed-in overturn function
• Big diameter pneumatic vacuum control valves
• Rubber pressure roller for feeding-in paper
• Antistatic platform for paper
• Automatic lifting function for feeding stack
• Feeding stack auto stop when top paper in position
• Independent controlled paper feeding table and independently controlled sheet roller
• Avoids inconsistency of paper length between sheets

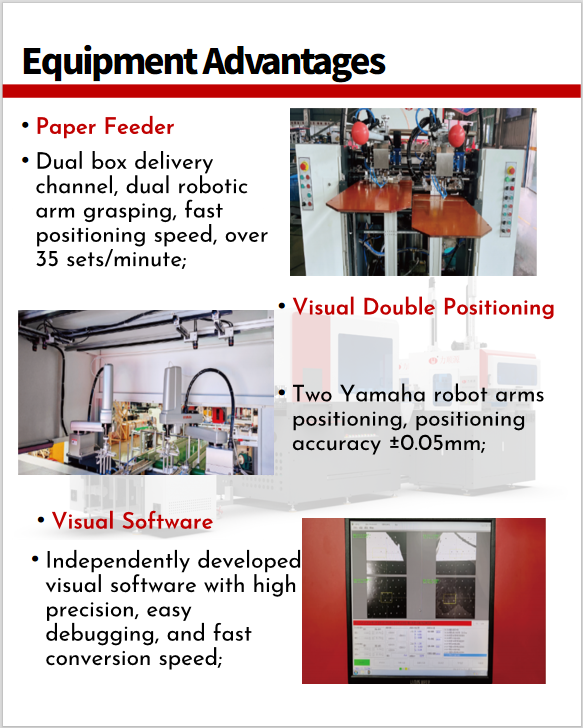

• YAMAHA Robot Arm for precise box spotting
• German Basler camera with Japanese Lens in 10 million pixel tracing system
• Four cameras with double robot arms working XY Spool for positioning

• Automatic setting by servo motors
• Dual station smart wrapper for increased production
• Virtual cam servo driving system
• Alarm device for collision detection
• Lift the box by holding the side of the box
• Scratch resistant for the paper
• Box-pressing down-side device

• Automatic control by servo motors for stable operations
• Fast transfer mold and quick machine adjustment
