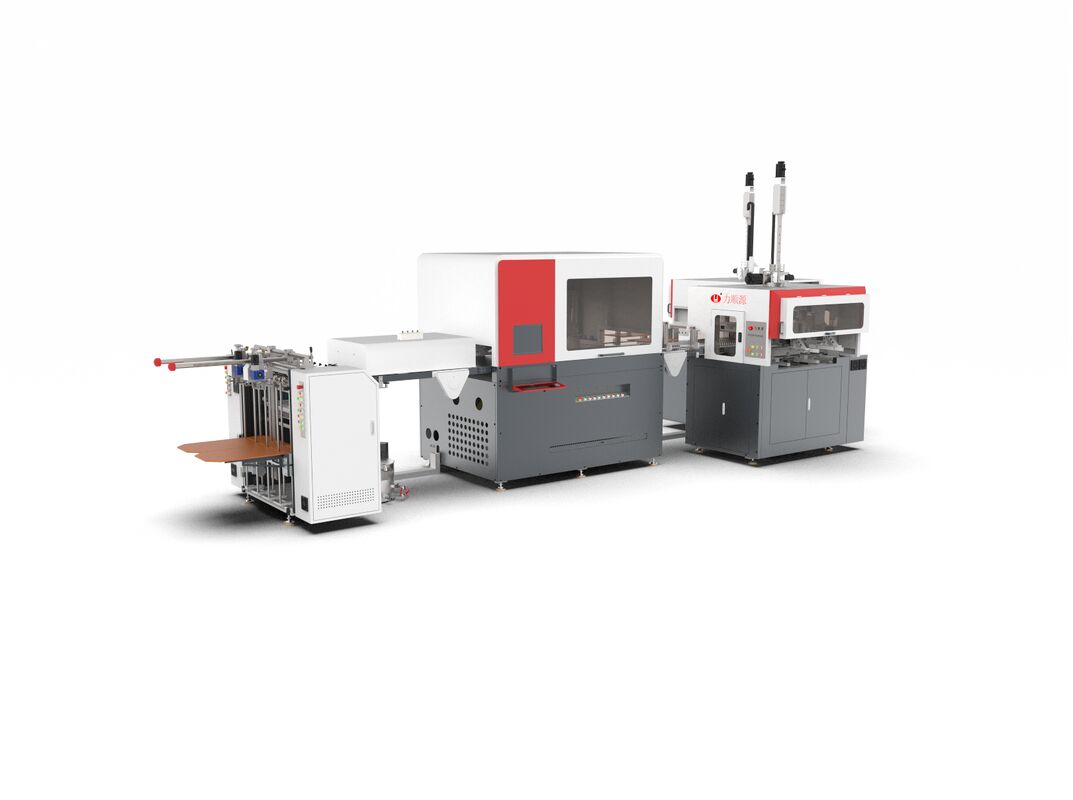

LY- HB3000A Intelligent 2 in 1 Rigid Box Making Machine (within bubble pressing functions)
The LY-HB3000A is an intelligent 2-in-1 high-speed rigid box making machine with an integrated online bubble pressing function. It achieves a production speed of up to 40 pcs/min (for double-sheet operation), positioning accuracy of ±0.05mm, and a change-over-time as short as 30 minutes.
This machine adopts servo control system and vision positioning system, featuring a 10-megapixel camera tracking system and YAMAHA robot arm for precise gray board positioning. It automatically completes paper feeding, gluing, cardboard feeding, corner pasting, positioning, box forming, edge wrapping, and in-line bubble pressing. With a wide forming range (min. 45×45×15mm, max. 550×400×130mm), collision detection alarm, and scratch-resistant design, the LY-HB3000A offers excellent reliability and ease of operation.
Key Features
- Shortest Change-over-time, thereby saving precious machine time
- Uses highly accurate Visual Robot arm positioning with camera system
- Dual Forming stations control by servo and digital setup.
- Includes in-line Bubble pressing module
- Production speed up to 40 pcs/min
- Positioning accuracy ±0.05mm
- Change-over-time (job transfer time) in 30 Minutes

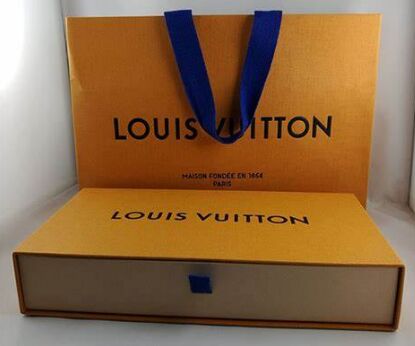

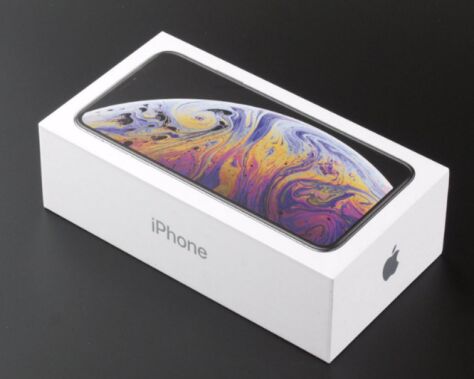

- Suitable for mobile phone box, cosmetics box, jewelry box, wine box cover and other boxes…
Excel cut consists of following sections:
| Feeder |
- Paper-feed-in overturn function.
- Big diameter pneumatic vacuum control valves.
- The rubber pressure roller for the feeding-in paper.
- The automatic lifting function for feeding stack.
- Feeding stack auto stop when top paper in position .
- Independent controlled paper feeding table and independently controlled sheet roller.
- Avoid the inconsistency of the length of the paper between the two sheets.
|
|
Positioning
|
- Robot Arm for spotting the box.
- Camera with in 10 million Pixel tracing system,positioning accuracy can reach 0.05mm.
- Two Cameras with robots arms working XY Spool for positioning.
|
|
Corner pasting
|
- Adopt bottom suction after the box is formed:secure it with a downward-pull suction nozzle, allowing the tray to stable fall onto the conveyor belt.
- A dual-station belt feeding system simultaneously transports two matching boxes of different sizes to the positioning section.
- Easy to set up, tape width in 19mm.
|
|
Forming Part (within online bubble pressing function )
|
- Automatic setting by servo motors, it is compatible with different brands of 950mm-high positioning machines.
- Dual Station smart wrapper for increased production.
- With a bubble pressing function, eliminating the need for a separate bubble pressing machine.
- Virtual cam servo driving system.
- Alarm device for collision detection.
- Lift the box by holding the side of the box.
- Scratch resistant for the paper.
- The minimum forming dimensions is 45*45*15mm.
The maximum forming dimensions is 550*400*130mm,
multiple to do big size box without corner pasting machine.
|
Technical Specifications
| Paper size |
single sheet |
double sheet |
| W :30-800mm |
W :30-375mm |
| L :60-1000mm |
L :60-900mm |
| Paper thickness |
80-300g/m2 |
| Cardboard thickness |
＞1mm |
| Finished box size |
L: 65-450mm |
L :65-450mm |
| W:65-420mm |
W :65-350mm |
| H:15-130mm |
H :15-130mm |
| Precision accuracy |
±0.05mm |
| Ear overlapping size |
7-100mm |
| Ear cross ear folding size |
120mm |
| Max power |
11KW |
| Capacity of production |
20-25 PCS/MIN |
40-50 PCS/MIN |
| Power Supply |
380V/50Hz |
| Glue tank volume |
50KG |
| Machine dimension |
L7415×W4500×H2000mm |
| Machine weight |
7200kg |
Process Flow
Packing and Shipping
Company Profile
Founded in 2001 and based in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established comprehensive sales and after-sales service networks throughout China, with products exported to over 40 countries across Europe, America, Southeast Asia, South America, the Middle East, and Africa.
Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in producing premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.
Upholding the development philosophy of "Customer First, Serve the Globe" and adhering to the strategy of "Strive for Perfection, Forge New Paths," LiShunyuan is committed to R&D of high-performance, high-efficiency products for the packaging industry, driving intelligent automation advancement.
Our Services & Strengths
We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum client support spanning pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging, aligned with each client's unique requirements.
Certifications
Manufacturing Workshop
Quality After-Sales Service Commitment
- 1 Hour Service: We respond to service requests within one hour with solution recommendations
- 12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
- Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
- Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
- Pre-sale Service: Comprehensive training programs with professional engineers before delivery
- Sale Services: Installation, debugging, and one week of free training services upon machine arrival
- After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
