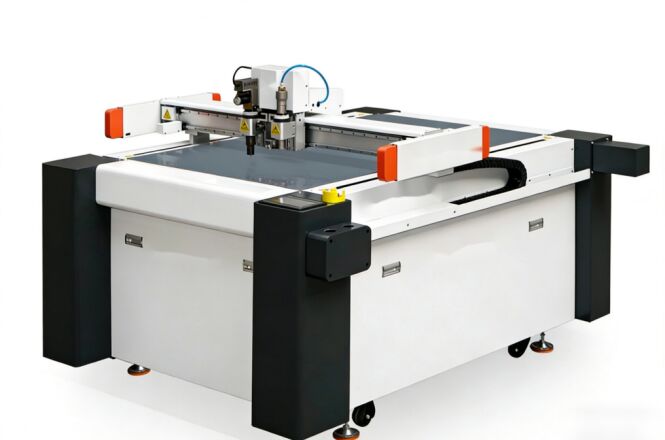

LY-RM-1209 No-die Non-metal Flexible Material Cutting Machine(Sample maker machine)
The LY-RM1209 is a no-die cutting machine for non-metal flexible materials, designed for packaging and printing sample making and small-batch production. It integrates cutting, creasing, grooving, and half-cut functions, supporting materials up to 35mm thick such as greyboard, corrugated board, EVA, and foam. With ±0.05mm accuracy, automatic tool setting, CAD/AI/DXF file support, and a built-in vacuum system, it ensures precise and reliable operation.
The machine offers a cutting speed of 1200mm/s and features dual independent work heads for continuous multi-tool operation. Its oscillating knife and creasing wheel deliver clean cuts and uniform creases on both thin and thick materials. Optional camera registration and grooving tools further enhance its flexibility for rapid prototyping and low-volume production.
Key Features
l Designed specifically for sample making and small-batch customized production in the packaging and printing industry.
l This machine features a high-end servo control system and requires no die-cutting mold.
l It is compatible with a wide range of materials, including greyboard, paperboard, corrugated cardboard, EVA, and more.
l The multi-function design integrates cutting, creasing, grooving, half-cut, making one machine suitable for multiple applications. It is ideal for packaging box and paper sample making, and also supports small-batch production.
Mechanical Details
|
|
The integrated steel frame is welded from thickened high-carbon steel, ensuring no deformation or vibration under long-term high-speed operation. It provides stable mechanical performance, guaranteeing cutting accuracy and machine longevity.
|
|
|
Built-in suction system that intelligently activates vacuum zones based on material size, delivering stronger and more uniform hold-down and significantly improving sheet flatness. It prevents edge lifting and shifting, and is suitable for both thin and thick boards.
|
|
|
Three independently driven work heads allow multiple tools to operate continuously, and tools are interchangeable between modules. Thus, one machine handles cutting, creasing, grooving, and plotting.With a maximum cutting thickness of 50mm, the machine is compatible with corrugated board, grey board, paperboard, thin foam, leather, and other sheet materials, meeting daily sample-making needs.
|
|
|
The built-in automatic tool setting system enables one-touch auto-setting and length compensation after a tool change, requiring no manual calibration. This ensures fast changeover with high precision.The high-precision servo-driven transmission system delivers cutting accuracy up to ±0.05mm and produces clean, burr-free edges.
|
|
|
You can directly import CAD, AI, or DXF files and generate cutting paths with one click, allowing the machine to cut any complex shape with zero learning curve.
|
|
|
Key components are protected against dust and debris, resulting in low failure rates and simple routine maintenance. Additionally, low energy consumption ensures environmentally friendly and cost-effective operation.Intelligent path optimization enables fast processing, shortening the sample-making cycle and allowing quick response to customer sample requests.
|
Function Examples
|
|
1.Grooving (V/U-Groove)
V/U grooving switchable, one-step forming for rigid & soft materials.
|
|
|
2.Half-Cut Die Cutting
Half-cut die cutting, cuts top layer only for easy-tear & connecting parts.
|
|
|
3.Creasing
Uniform creasing, no cracking or wrinkling when folding.
|
|
|

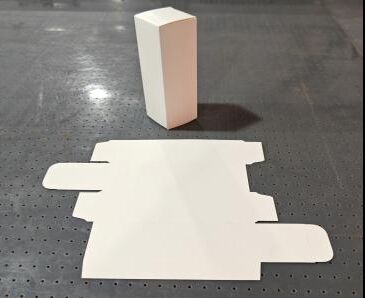

4.Full-Cut Die Cutting
No mold required, precise full-through cutting, suit for small-batch sampling. High-precision cutting with no wrinkling on thin paper and no edge bursting on thick paper.
|
|
|
5.EVA Cutting
Special non-stick cutter, smooth and clean EVA cutting.
|
|
|
6.Corrugated Board Cutting
Integrated cutting, creasing, and slotting for accurate reproduction of carton structures.
|
|
|
7.Adhesive Label Cutting
Precision-controlled depth die-cutting that cuts through only the face paper and adhesive layer while leaving the liner intact.
|
|
|
8.Foam Cutting
Capable of high-precision cutting of complex contour shapes, suit for various packaging insert processing.
|
Technical Specifications
|
Specifications
|
|
|
MAX working speed
|
1500mm/s
|
|
MAX cutting speed
|
1200mm/s
|
|
Working accuracy
|
±0.05mm
|
|
Thickness of work piece
|
35mm
|
|
Effective working size
|
L1200mm*W900mm
|
|
Power supply
|
220V/380V±10%
|
|
Total power
|
4.0KW
|
|
Machine dimension
|
L2150*W1780*H1330mm
|
Quality After-Sales Service Commitment
- 1 Hour Service: We respond to service requests within one hour with solution recommendations
- 12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
- Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
- Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
- Pre-sale Service: Comprehensive training programs with professional engineers before delivery
- Sale Services: Installation, debugging, and one week of free training services upon machine arrival
- After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
